MATCH Tile

Solar roof covering in combination with roof tiles.

Areas of application

MATCH Tile is predestined for roof-integrated systems with high aesthetic demands – especially for projects where the design of the roof is based on a classic tile look and/or demanding roof geometries exist.

How it works

The system is built on a conventional roof battening. The solar modules are fixed to the roof with discreet MATCH hooks and form a seamless transition to the roof tiles, whereby no on-site metal sheeting work is required.

Installation process

1 Prepare roof battening.

2 Install module hooks.

3 Insert MATCH Tile modules.

Module formats

Cellular matrix: 2 x 2 cells
Grid dimensions: 446 x 380 mm
(Module type A2, replaces 2 tiles)

Cellular matrix: 2 x 4 cells
Grid dimensions: 765 x 380 mm
(Module type B3, replaces 3 tiles)

Cellular matrix: 2 x 7 cells
Grid dimensions: 1230 x 380 mm
(Module type C5, replaces 5 tiles)

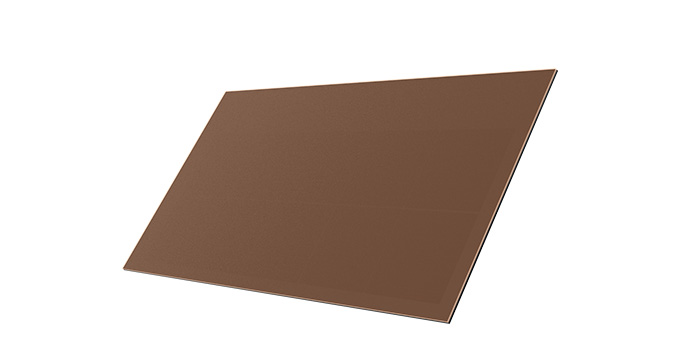

Cellular matrix: 2 x 5 cells
Grid dimensions: 892 x 380 mm
(Module type A4, replaces 4 tiles)

Cellular matrix: 2 x 9 cells
Grid dimensions: 1530 x 380 mm
(Module type B6, replaces 6 tiles)

Cellular matrix: 2 x 6 cells
Grid dimensions: 1060 x 380 mm
(Module type D5/E4, replaces 5/4 tiles)

Installation layouts

standard

offset

Design

MATCH Tile is available as standard in Full Black, Brown, Grey and Terracotta. Individual colours and glass surfaces can be freely designed according to SOLARCOLOR.

Fjord Full Black

fjord brown

Fjord Brown

Fjord grey

Fjord Grey

Fjord Terracotta

Compatibility

MATCH Tile is compatible with the following roof tiles:

  • ZZ Wancor Plano & Swiss TL
  • Nelskamp G10
  • Erlus Scala
  • AGZ Ziegeleien AG GS37 Glattschiebeziegel
  • Jacobi Walther Z10
  • Creaton Cantus
  • Gasser FS03 & MS95

(other manufacturers/tiles on request)

Components

  • MATCH Tile module
  • MATCH Tile hook

Sub-roof requirements

  • Roof pitch above 25°: sub-roof for normal demands
  • 14° - 25°: for increased demands
  • 8° - 13°: for extraordinary demands

Technical specifications


Solar module type: glass-glass modules


Hail protection: Protection class 5 (hailstone size 50 mm)


Fire protection: Top and back layer are made of heat-resistant glass. The component is considered to be non-combustible material as defined by the Cantonal Fire Insurances.


Rear ventilation: by means of wooden slats
